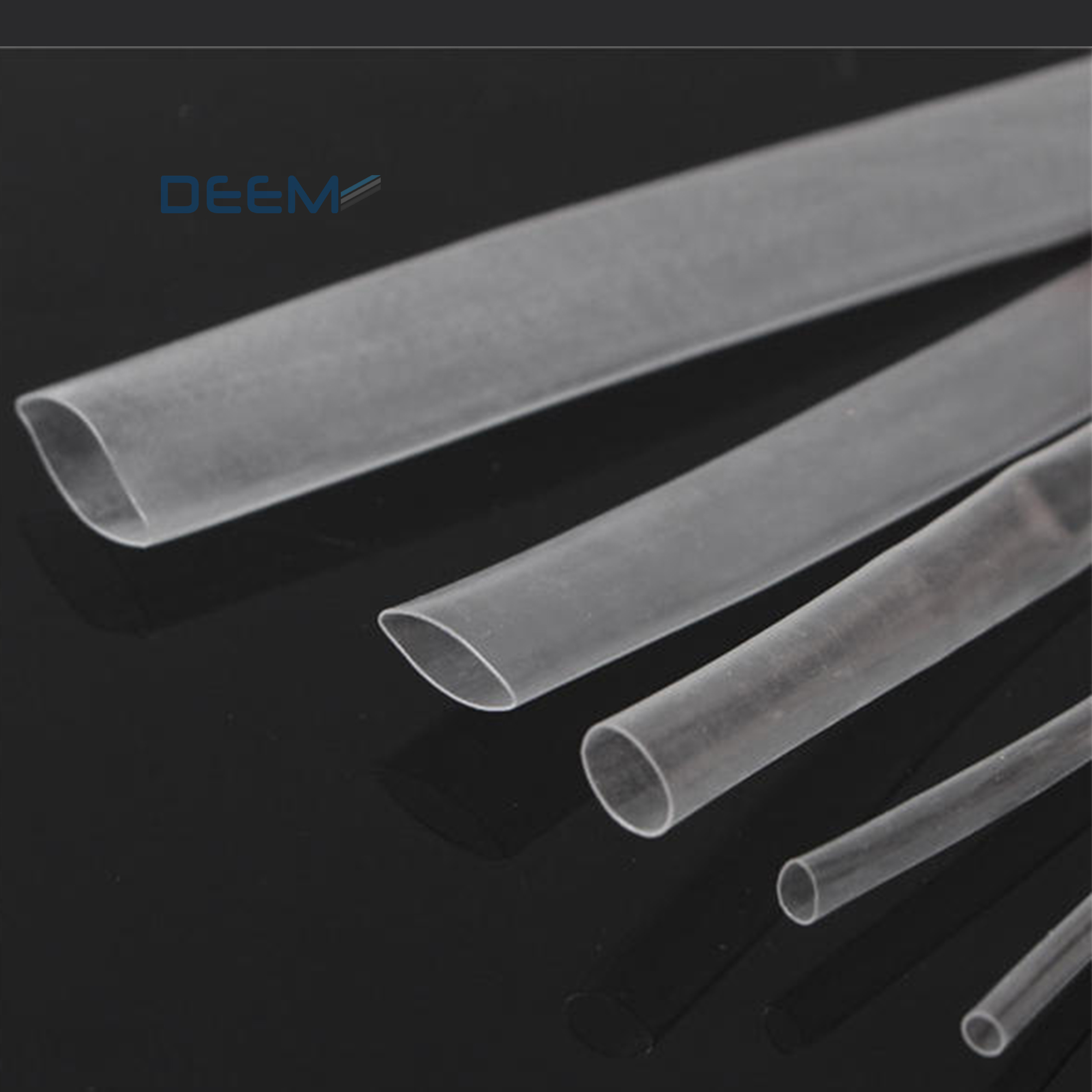

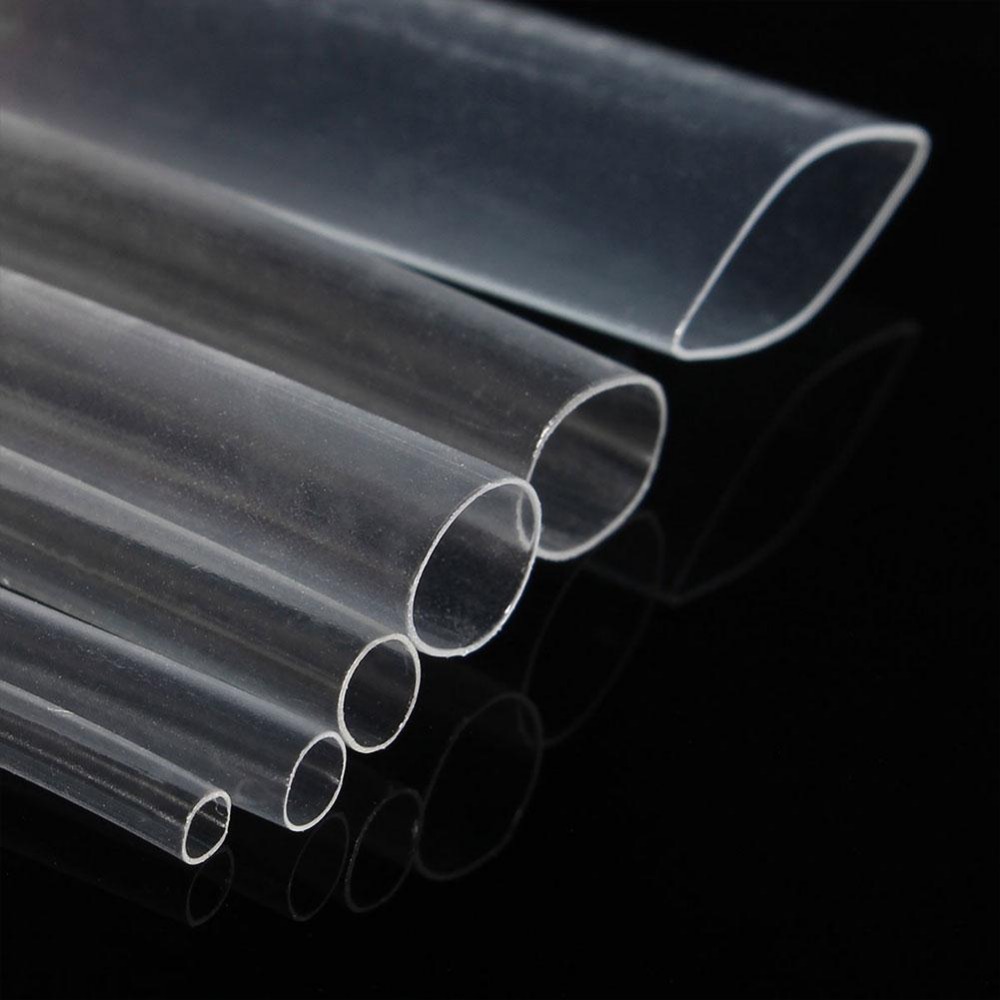

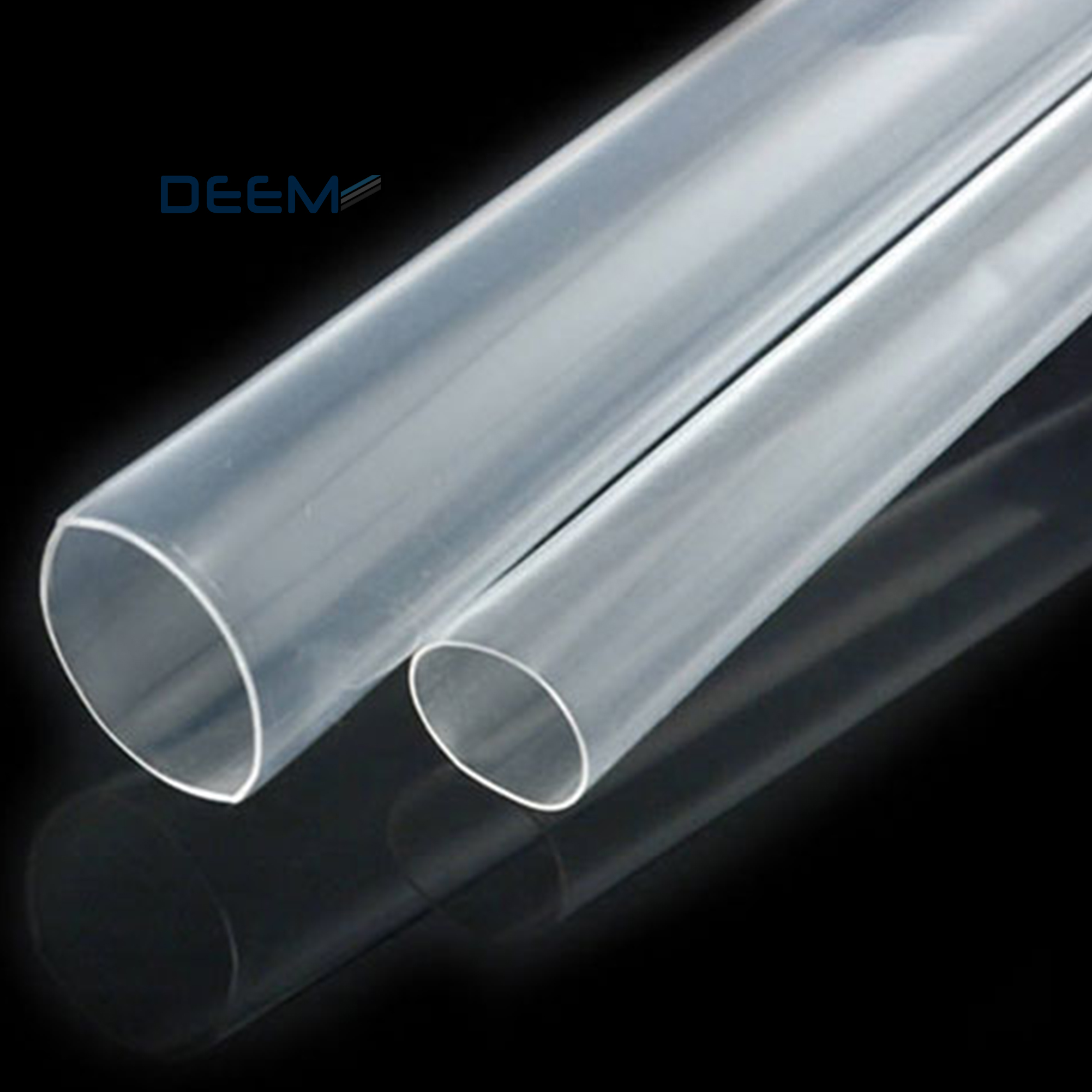

FEP heat shrink tubing
- BrandDEEM
- TypeDM-FEP
Applications
Suitable for high end, critical applications, typically: military, aerospace, medical
and optical sectors.
Features:
High performance, highly flame retardant, modified fluorinated ethylene propylene
(FEP) heat shrink tubing. Excellent resistance to chemicals and a low friction coefflcient.
Various
Standard color: Natural. Other colors available on request.
Shrink Ratio: 1.3:1 1.6:1
Technical Data
Dimensions/Shrink ratio: 1.6: 1
Property
Test Method
Typical Data
Physical Chemical
Operating temperature
UL 224
-200°C to+205℃
Longitudinal change
ASTM D2671
±30%
Tensile strength
ASTM D683
>18 MPa
Elongation at break
ASTM D683
≥245%
Flammability
UL94 V0
Pass
Electrical
Dielectric strength
ASTM D149
≥19.7KV/mm
Volume resistivity
ASTM D257
2300%
Chemical
Resistivity
Inert
Dimensions/Shrink ratio: 1.3: 1
Size After Recovery (mm)
Wall Thickness. (t)
Min
Mor
Max
3
2.3
0.15
0.20
0.25
1.2
4
3.1
0.15
0.20
0.25
1.2
5
3.8
0.15
0.20
0.25
1.2
6
4.6
0.15
0.20
0.25
1.2
7
5.4
0.18
0.23
0.28
1.2
8
6.2
0.18
0.23
0.28
1.2
10
7.7
0.18
0.23
0.28
1.2
12
9.2
0.18
0.25
0.33
1.2
16
12.3
0.18
0.25
0.33
1.2
18
13.8
0.18
0.25
0.33
1.2
|
Size As Supplied
(mm)
|
Size After Recovery (mm) |
Standard
length
m/spool
|
|||
|
Inside Diameter
Max. (d)
|
Wall Thickness. (t) | ||||
| Min | Mor | Max | |||
| 3 | 2.3 | 0.15 | 0.20 | 0.25 | 1.2 |
| 4 | 3.1 | 0.15 | 0.20 | 0.25 | 1.2 |
| 5 | 3.8 | 0.15 | 0.20 | 0.25 | 1.2 |
| 6 | 4.6 | 0.15 | 0.20 | 0.25 | 1.2 |
| 7 | 5.4 | 0.18 | 0.23 | 0.28 | 1.2 |
| 8 | 6.2 | 0.18 | 0.23 | 0.28 | 1.2 |
| 10 | 7.7 | 0.18 | 0.23 | 0.28 | 1.2 |
| 12 | 9.2 | 0.18 | 0.25 | 0.33 | 1.2 |
| 16 | 12.3 | 0.18 | 0.25 | 0.33 | 1.2 |
| 18 | 13.8 | 0.18 | 0.25 | 0.33 | 1.2 |
| 20 | 15.4 | 0.18 | 0.28 | 0.38 | 1.2 |
| 25 | 19.2 | 0.18 | 0.28 | 0.38 | 1.2 |
| 30 | 23.1 | 0.18 | 0.28 | 0.38 | 1.2 |
| 35 | 26.9 | 0.18 | 0.28 | 0.38 | 1.2 |
| 40 | 30.1 | 0.18 | 0.28 | 0.38 | 1.2 |
| 45 | 34.6 | 0.20 | 0.30 | 0.41 | 1.2 |
| 50 | 38.5 | 0.20 | 0.30 | 0.41 | 1.2 |
| 55 | 42.3 | 0.20 | 0.30 | 0.41 | 1.2 |
| 60 | 46.2 | 0.28 | 0.38 | 0.48 | 1.2 |
| 65 | 50 | 0.41 | 0.51 | 0.61 | 1.2 |
| 70 | 53.8 | 0.41 | 0.51 | 0.61 | 1.2 |
| 80 | 61.5 | 0.53 | 0.64 | 0.74 | 1.2 |
| 90 | 69.2 | 0.66 | 0.76 | 0.86 | 1.2 |
| 100 | 76.9 | 0.79 | 0.89 | 0.99 | 1.2 |
| 110 | 84.6 | 0.79 | 0.89 | 0.99 | 1.2 |
| 120 | 92.3 | 0.79 | 0.89 | 0.99 | 1.2 |
| 130 | 100 | 0.79 | 0.89 | 0.99 | 1.2 |
| 140 | 107.7 | 0.79 | 0.89 | 0.99 | 1.2 |
| 150 | 115.4 | 0.79 | 0.89 | 0.99 | 1.2 |
Special sizes (up to 7 inches) and other special features available on request
