Heat shrink solder sleeve wire splices
2024/7/26 viewers
- BrandDEEM
- TypeDS-R
Introduction
Applications
Discrete Solder Sleeve Wire Terminators (Shield Terminators).
Voltage 1kV.Ideal for wire termination
Designed for wire connection, double solder loop heat
shrinkable protection, waterproof finish Design products.
Features
shrinkage 2:1
Contain glue with waterproof function
Hot melt adhesive label size suitable color
Design easy for operation
Operating temperature:
Working temperature: - 55°C~125°C
Fully contraction temperature: 130°C
Solder began to melt temperature: 125°C
Solder completely melt temperature: 150°C
Discrete Solder Sleeve Wire Terminators (Shield Terminators).
Voltage 1kV.Ideal for wire termination
Designed for wire connection, double solder loop heat
shrinkable protection, waterproof finish Design products.
Features
shrinkage 2:1
Contain glue with waterproof function
Hot melt adhesive label size suitable color
Design easy for operation
Operating temperature:
Working temperature: - 55°C~125°C
Fully contraction temperature: 130°C
Solder began to melt temperature: 125°C
Solder completely melt temperature: 150°C
Technical data
| Item | Test Method | Typical Data | ||||
| Dielectric voltage withstand | RT-1404 | 2.0kV | ||||
| Voltage rating | RT-1404 | 600V | ||||
| Voltage drop | RT-1404 | Less than 2.0mV | ||||
| Copper corrosion | UL224/ASTM D2671 | Non-corrosive | ||||
尺寸

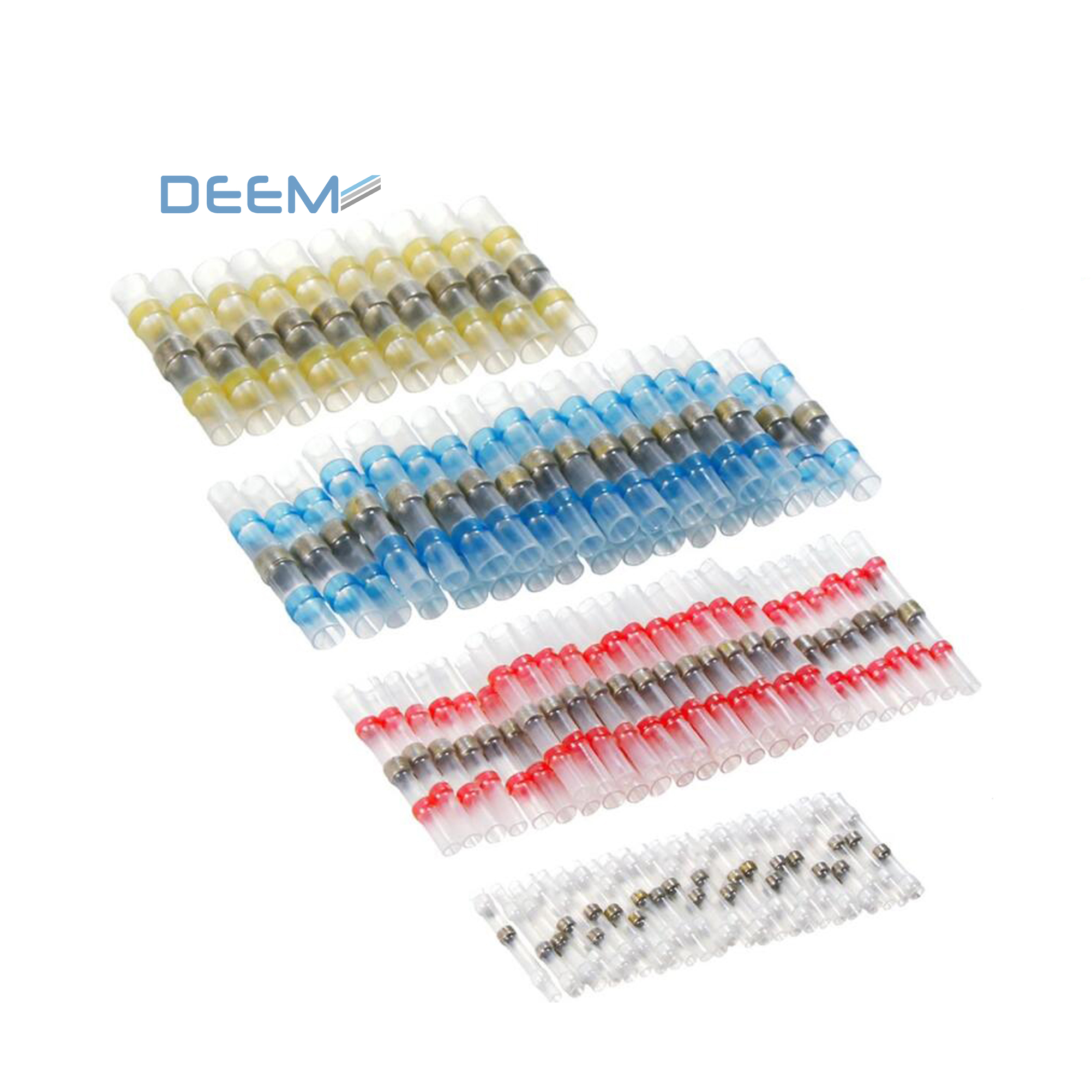

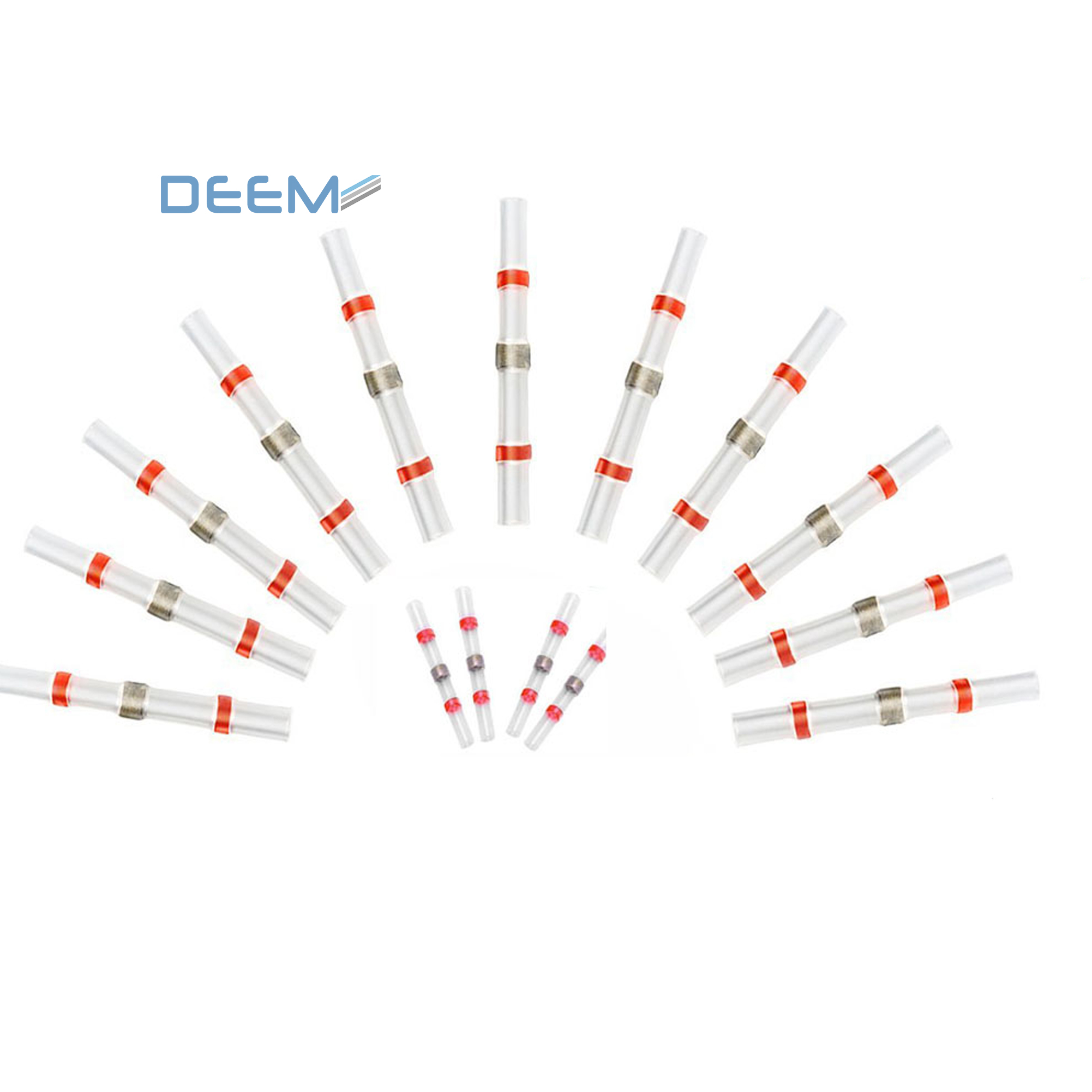

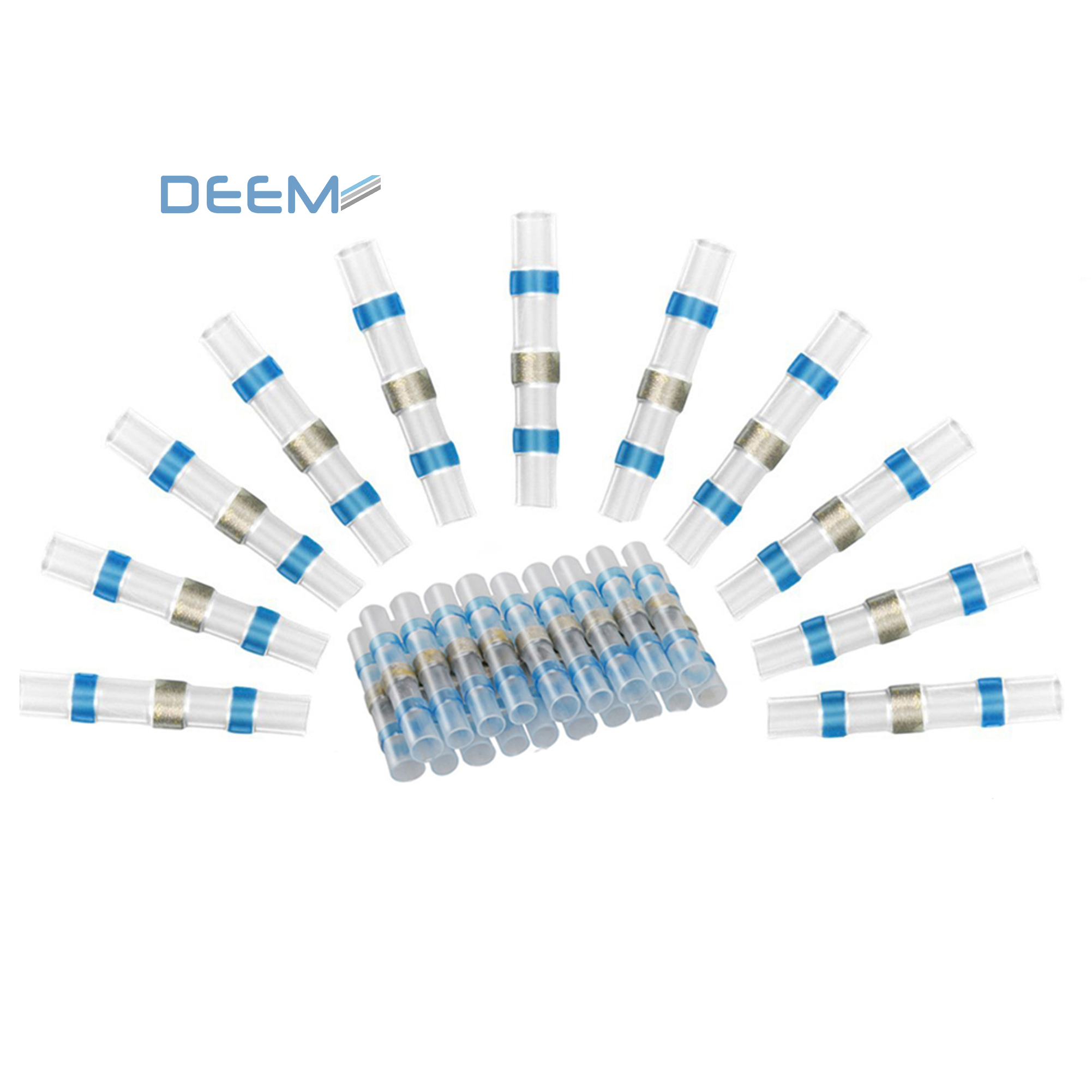

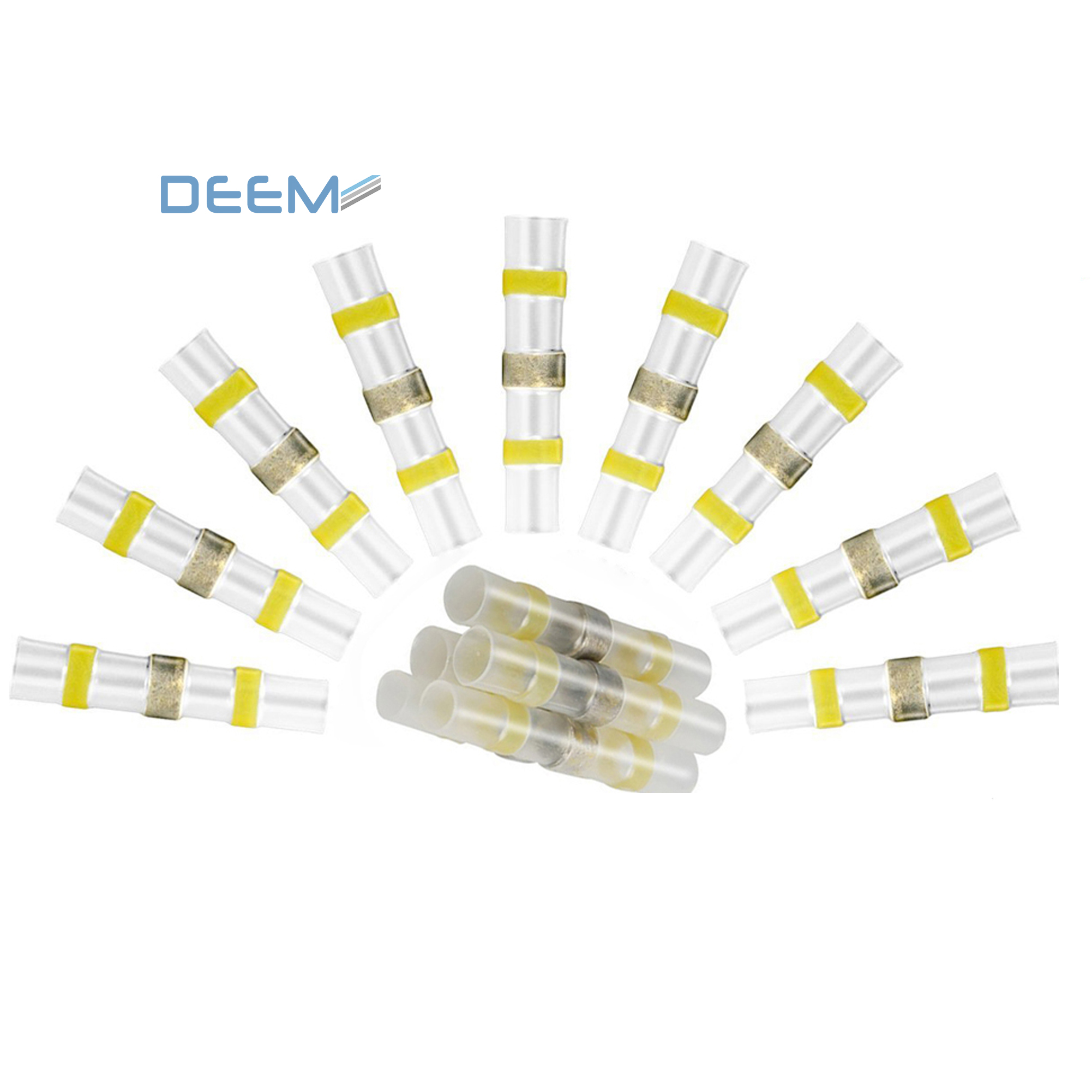

| Product Code | Product | Wire | Cable Size | Standard Color | |||
| Dimensions(mm) | Dimensions(mm) | ||||||
| A(min) | L(min) | B(min) | B and C(max) | C(min) | A.W.G(mm2) | ||
| DS-R 1 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24(0.25-0.34) | White |
| DS-R 2 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18(0.5-1.0) | Red |
| DS-R 3 | 4.5 | 40 | 2.3 | 4.5 | 2.0 | 16-14(1.5-2.5) | Blue |
| DS-R 4 | 6 | 40 | 3.7 | 6.0 | 3.4 | 12-10(4.0-6.0) | Yellow |
*Other size available on request

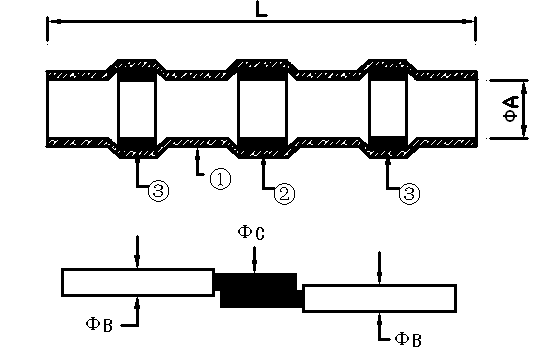

①Heat shrinkable tubing
②Low temperature solder sleeve
③Waterproof hot melt adhesive
①Heat shrinkable tubing
②Low temperature solder sleeve
③Waterproof hot melt adhesive
