Heat shrink solder sleeve wire shield terminators
2024/7/26 viewers
- BrandDEEM
- TypeDS-RS
Introduction
ApplicationsOne piece design, used for shield to ground termination. High performance PE transparent sleeve provides insulation, inspection, strain relief and water proof.
Preinstalled ground lead and pre-fluxed solder perform provides a perfectly soldered, strain-relieved and environmentally protected terminal.
Features
Shrink ratio 2:1
Abrasion and chemical corrosion resistance
Transparent sleeve provides precise inspection
Operating temperature:
Operating temperature:-55°C~125°C
Minimum shrink temperature:80°C
Technical data
Item
Typical Data
Operating temperature
-55℃~125℃
Shrink temperature
>160℃
Dielectric strength
1kv
Protection type
IP67

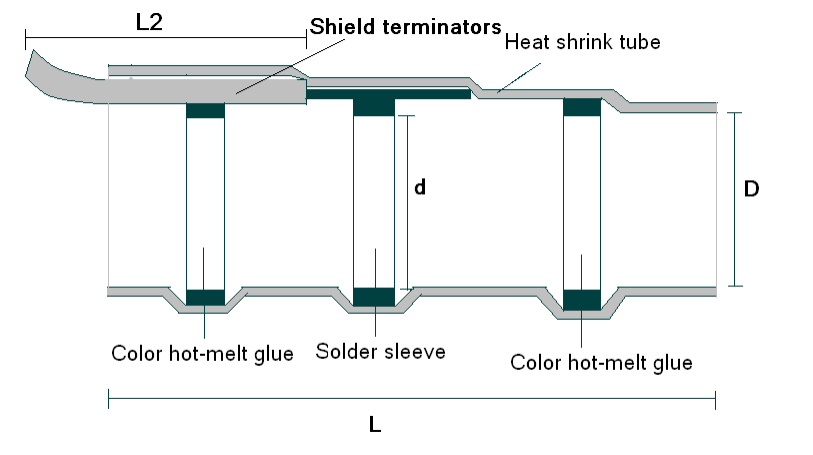

| Part No. | Heat Shrink tube(mm) | Solder sleeve(mm) | Preinstalled wire lead( mm) | ||||
| D | L | d | H | A.W.G | mm2 | L2 | |
| 270 | 2.7 | 25 | 2.7 | 2.5 | 22 | 0.5 | 165 |
| 450 | 4.5 | 29 | 4.5 | 2.5 | 22 | 0.5 | 160 |
| 600 | 6.0 | 32 | 6.0 | 3.5 | 22 | 0.5 | 155 |
| 700 | 7.0 | 33 | 7.0 | 3.5 | 22 | 0.5 | 155 |
| 870 | 8.7 | 35 | 8.7 | 3.5 | 22 | 0.5 | 155 |
| 1070 | 10.7 | 35 | 10.7 | 3.5 | 22 | 0.5 | 155 |
| 1300 | 13 | 45 | 13 | 4.5 | 22 | 0.5 | 155 |
| 1780 | 18 | 56 | 18 | 6.0 | 22 | 0.5 | 155 |
