Heat shrink double nng solder sleeve wire splices
- BrandDEEM
- TypeDS-RD
Applications
One piece design , it consists of transparent heat shrinkable sleeve and fluxed solder ,Provides insulation , inspection , strain relief and waterproof Makes insulation easy andlowers the installed cost . Color hot-melt glue on two ends of heat shrinkable tube , It'svery convenience to use the exact wire dimension.
Features
Shrinkage 2 : 1
Contain glue with waterproof function
Hot melt adhesive label size suitable color
Design easy for operation
Operating temperature
Working temperature : -55℃-125℃
Fully contraction temperature : 130℃
Solder began to melt temperature : 138℃
Solder completely melt temperature : 160℃
Technical data
Item
Typical Data
MAX operating Temperature
-55℃~+125℃
Shrinking temperature
>115℃
Dielectric strength
1 KV
Protection type
IP 67

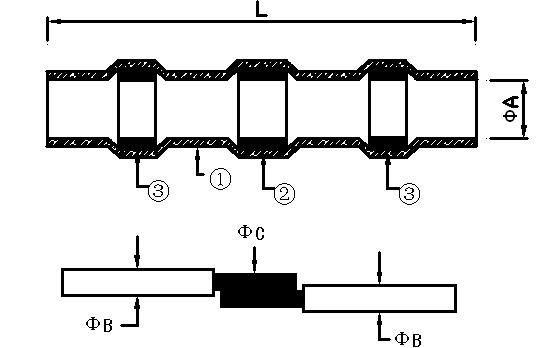

Dimensions
Cable Size
A(min)
L(min)
B(min)
B and C(max)
C(min)
A.W.G(mm2)
DS-RD-1
1.7
26
1.0
1.7
0.76
26-24(0.25-0.34)
White
DS-RD-2
2.7
40
1.4
2.7
1.2
22-18(0.5-1.0)
Red
DS-RD-3
4.5
40
2.3
4.5
2.0
16-14(1.5-2.5)
Blue
DS-RD-4
6.0
40
3.7
6.0
3.4
12-10(4.0-6.0)
Yellow
① Heat shrinkable tubing
② Low temperature solder sleeve
③ Waterproof hot melt adhesive
