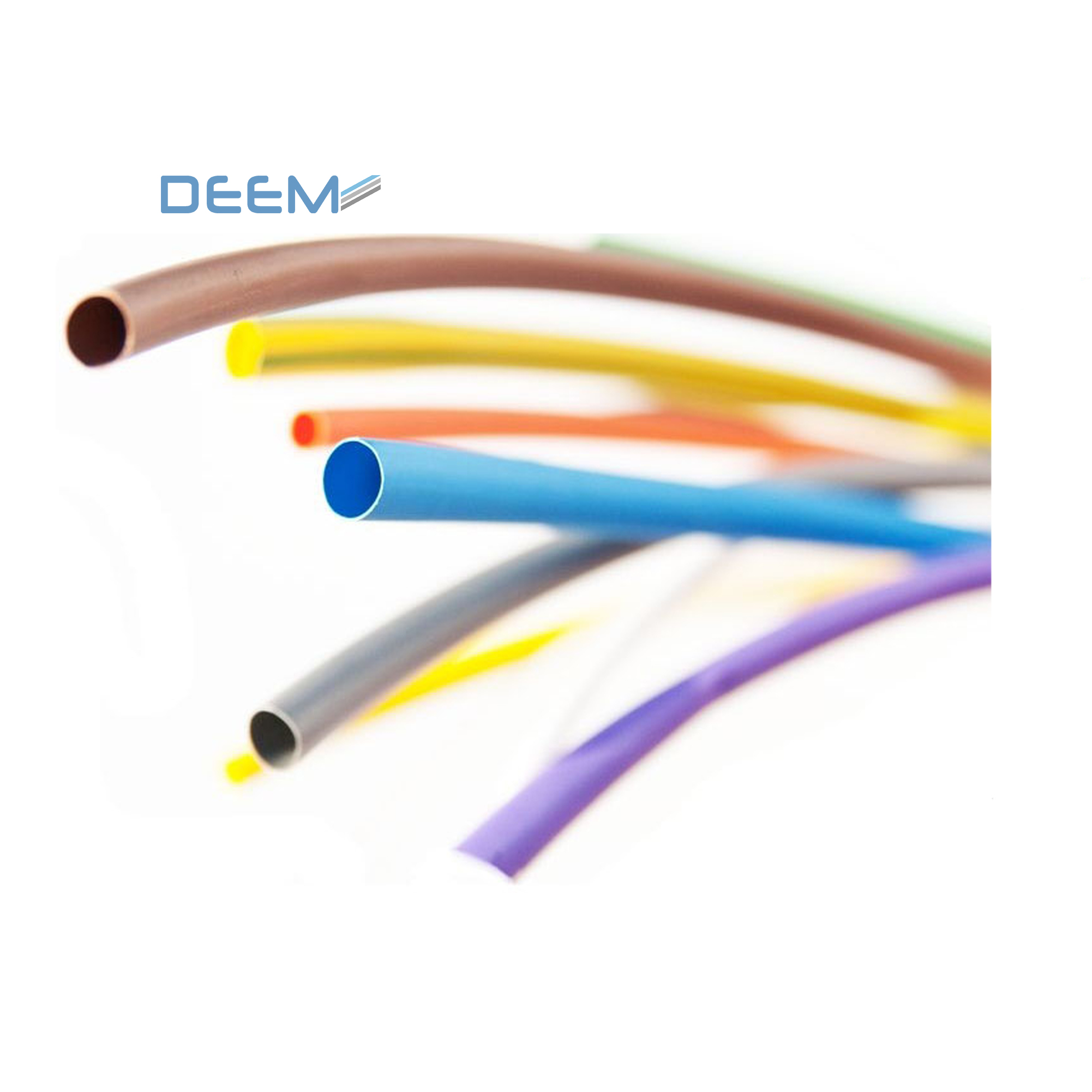

Flexible, General Purpose Flame Retardant Heat Shrink Tubing
- BrandDEEM
- TypeDM-T125
Features
Specially designed formula approved by UL. Flexible and flame
-retardant. Free from toxic heavy metal and harmful substances
such as PBB's, PBBO's, PBBE's. Offering low shrinking temperature.
Various
Zero halogen
Low smoke generation if burning
Operating temperature : -55°C to +125°C
Minimum shrink temperature: 70°C
Minimum fully recovery temperature: 100°C
Approvals: UL 224 125°C VW-1 600 V
Material: No PBB's, PBBO's, or PBBE's. Lead content < 10 ppm.

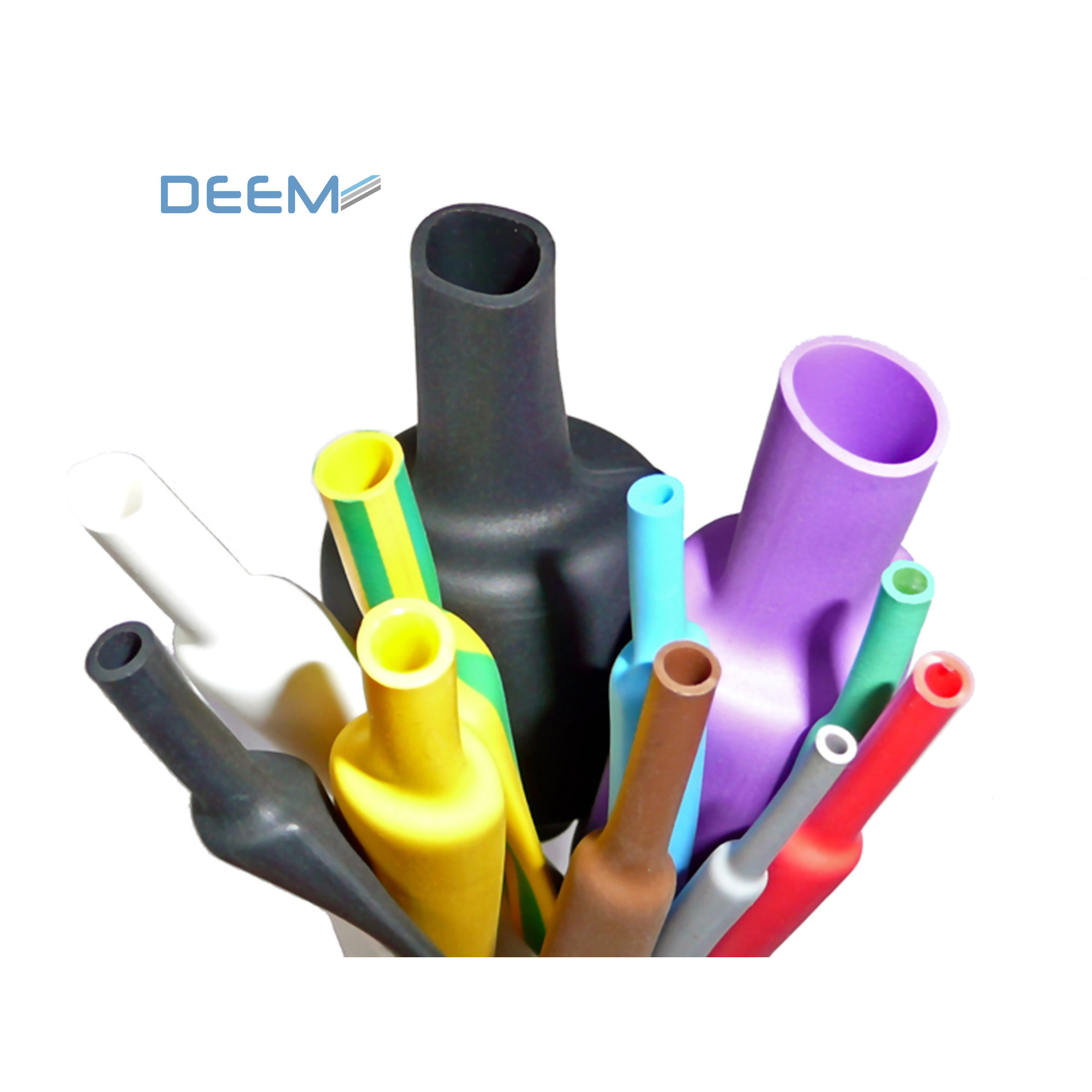

Standard colors: Black, red, blue, yellow, green, white. Other colors available on request.
Shrink ratio: 2:1 (3:1 and 4:1 available)
Technical Data
| Property | Test Method | Typical Data |
| Operating temperature | UL224 | -55C to+125°C |
| Tensile strength | ASTM D 2671 | >14 MPa |
| Elongation at break | ASTM D 2671 | 400% |
| Longitudinal shrinkage | UL224 | 0±5% |
| Eccentricity | ASTM D 2671 | <30% |
| Flammability | VW-1 | Pass |
| Dielectric strength | IEC 243 | >20 KV/mm |
| Volume resistance | IEC 93 | 1014Ω.cm |
| Copper stability | UL224 | Pass |
| Heat aging / Tensile strength/ Ultimate elongation | 158C/168h | Unaged/>12 MPa/>350% |
Dimensions/2X
Dimensions/3X
Size
As Supplied(mm)
After Recovery(mm)
Special Type
0.5
0.15
0.2
0.22
200
0.6
0.15
0.3
0.22
200
0.8
0.18
0.4
0.22
200
3/64
1.2
0.18
0.6
0.30
200
1/16
1.6
0.25
0.8
0.33
200
3/32
2.4
0.25
1.2
0.36
200
1/8
3.2
0.25
1.6
0.44
200
3/16
4.8
0.25
2.4
0.55
100
1/4
6.4
0.30
3.2
0.55
100
3/8
9.5
0.35
4.8
0.55
100
1/2
12.7
0.35
6.4
0.65
100
5/8
16
0.40
8
0.69
100
3/4
19.1
0.40
9.5
0.89
100
1
25.4
0.45
12.7
0.90
50
11/4
32
0.45
16
0.90
50
11/2
38.1
0.50
19.1
1.00
50
2
50.8
0.50
25.4
1.00
25
3
76.2
0.55
38.1
1.20
25
4
100
0.55
50.8
1.30
25
5
120
0.55
63
1.40
25
6
150
0.55
75
1.40
25
7
180
0.55
90
1.40
25
8
210
0.55
105
1.40
25
9
230
0.55
115
1.40
25
10
250
0.55
125
1.40
25
| Size | As Supplied(mm) | After Recovery(mm) |
Standard length
m/spool
|
||
|
DM-T125
3X inch. (D)
|
Inside Diameter
Min. (D)
|
Wall Thickness
Nominal. (T)
|
Inside Diameter
Max. (d)
|
Wall Thickness
Nominal. (t)
|
|
| 1/16 | 1.5/0.5 | 0.15 | 0.5 | 0.45 | 200 |
| 1/8 | 3/1 | 0.18 | 1.0 | 0.55 | 200 |
| 3/16 | 4.5/1.5 | 0.20 | 1.5 | 0.60 | 100 |
| 1/4 | 6/2 | 0.22 | 2 | 0.65 | 100 |
| 3/8 | 9/3 | 0.30 | 3 | 0.75 | 50 |
| 1/2 | 12/4 | 0.35 | 4 | 0.80 | 50 |
| 5/8 | 15/5 | 0.35 | 5 | 0.85 | 50 |
| 3/4 | 18/6 | 0.40 | 6 | 0.89 | 50 |
| 1 | 24/8 | 0.45 | 8 | 1.00 | 25 |
| 11/4 | 30/10 | 0.45 | 10 | 1.15 | 25 |
| 11/2 | 39/13 | 0.50 | 13 | 1.25 | 25 |
| 2 | 50/16 | 0.75 | 16 | 2.3 | 1 |
| 21/2 | 60/20 | 0.80 | 20 | 2.4 | 1 |
| 3 | 70/23 | 0.85 | 23 | 2.4 | 1 |
| 4 | 100/33 | 0.85 | 33 | 2.4 | 1 |
Dimensions/4X
| Size | As Supplied(mm) | After Recovery(mm) |
Standard length
(m)
|
|
|
DM-T125
4X inch. (D)
|
Inside Diameter
Min. (D)
|
Inside Diameter
Max. (d)
|
Wall Thickness
Nominal. (t)
|
|
| 3/16 | 4/1 | 1 | 0.70 | 1 or 1.22 |
| 1/4 | 6/1.5 | 1.5 | 0.78 | 1 or 1.22 |
| 3/8 | 8/2 | 2 | 0.80 | 1 or 1.22 |
| 1/2 | 12/3 | 3 | 0.90 | 1 or 1.22 |
| 5/8 | 16/4 | 4 | 1.00 | 1 or 1.22 |
| 3/4 | 20/5 | 5 | 1.50 | 1 or 1.22 |
| 1 | 25/6.5 | 6.5 | 1.60 | 1 or 1.22 |
| 11/4 | 32/8 | 8 | 1.70 | 1 or 1.22 |
| 11/2 | 40/10 | 10 | 1.70 | 1 or 1.22 |
| 2 | 51/14 | 14 | 1.70 | 1 or 1.22 |
| 3 | 70/23 | 6 | 1.70 | 1 or 1.22 |
| 4 | 102/26.7 | 26.7 | 1.70 | 1 or 1.22 |
| 41/2 | 115/36.8 | 36.8 | 1.70 | 1 or 1.22 |
Special sizes (up to 7 inches) and other special features available on request
Applications

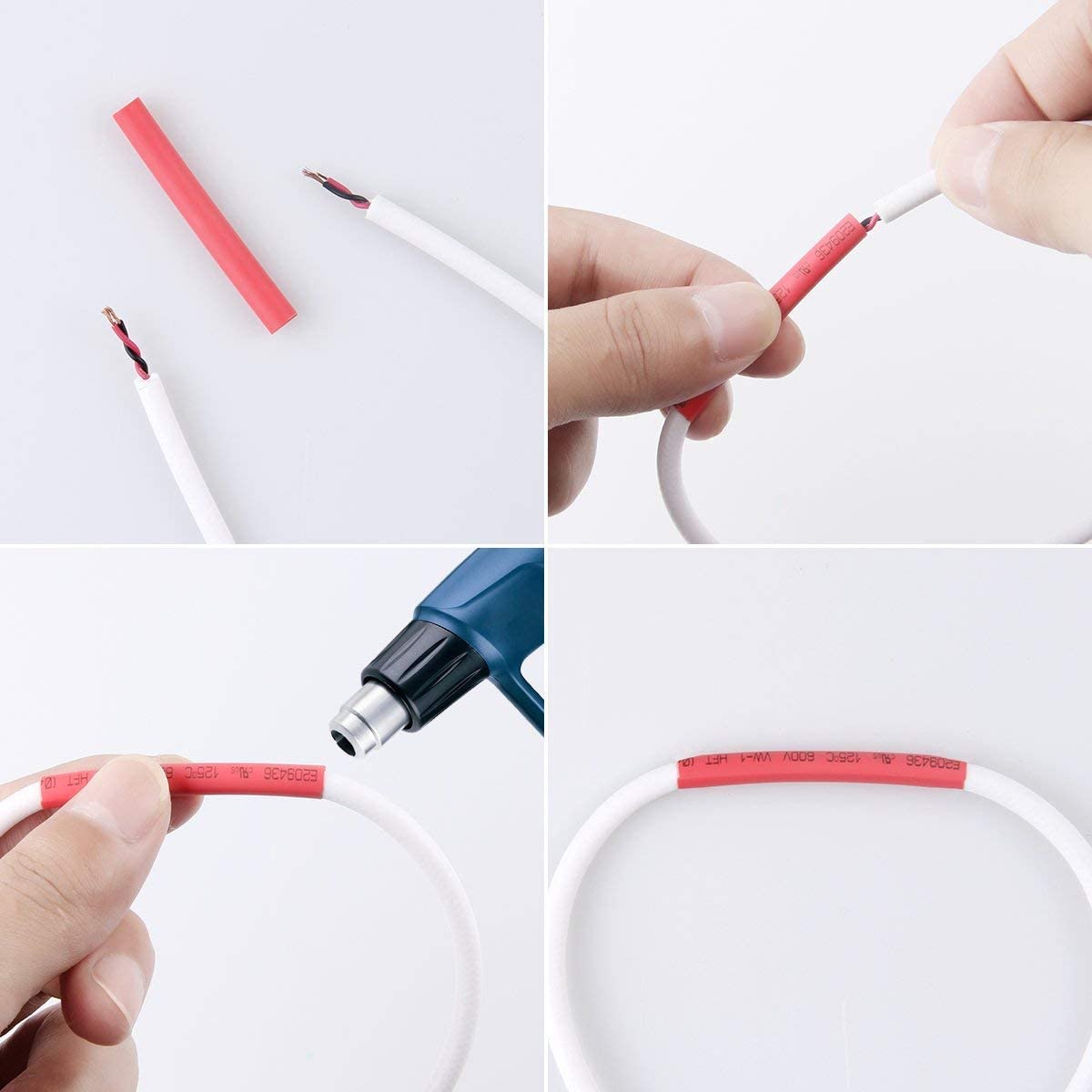

Perfect for numerous electronic, automotive and consumer goods. Suitable for electrical insulation, protection
of components, strain relief, cable bounding, identification.
Services
? Cut to any length
? Print your own logo
? Different ways of packaging (box, bag)
