Cold Shrink Silicone Rubber Breakout
2024/7/29 viewers
- BrandDEEM
- TypeDM-CRB
Introduction
Features
Simple and fast installation meeting a variety of configuration requirements.
Providing sealing protection over multi-core cable crutch , including 3- .4- . 5- .6-core breakouts.

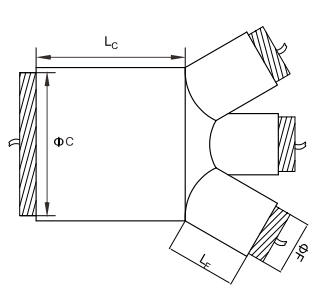

Dimensions
| Cores |
ΦC Expanded
(max)/mm
|
Application
Range/mm
|
ΦF Expanded
(max)/mm
|
Application
Range/mm
|
LF/mm | LC/mm |
| 2 | 47 | Φ23-Φ37 | 20 | Φ8- Φ15 | 35 | 100 |
| 2 | 65 | Φ30-Φ55 | 25 | Φ10- Φ20 | 35 | 110 |
| 2 | 80 | Φ34- Φ57 | 32 | Φ15- Φ25 | 35 | 120 |
| 2 | 110 | Φ44- Φ95 | 47 | φ20- φ40 | 35 | 130 |
| 3 | 56 | Φ30- Φ43 | 20 | Φ10- Φ15 | 35 | 105 |
| 3 | 65 | Φ36- Φ55 | 25 | Φ13- Φ20 | 35 | 125 |
| 3 | 80 | Φ46-Φ67 | 32 | Φ19- Φ26 | 45 | 130 |
| 3 | 88 | Φ54-Φ78 | 35 | Φ21- Φ31 | 45 | 135 |
| 3 | 104 | Φ62- Φ90 | 40 | Φ25- Φ33 | 45 | 150 |
| 3 | 120 | Φ72-Φ105 | 47 | Φ31- Φ40 | 45 | 165 |
| 3 | 140 | Φ88- Φ120 | 60 | Φ36- Φ52 | 55 | 180 |
| 3 | 150 | Φ88- Φ128 | 65 | Φ36- Φ57 | 55 | 180 |
| 3 | 165 | Φ88- Φ138 | 70 | Φ36- Φ62 | 55 | 180 |
| 4 | 60 | Φ26- Φ45 | 20 | Φ10- Φ14 | 35 | 126 |
| 4 | 70 | Φ36- Φ55 | 25 | Φ12- Φ17 | 40 | 137 |
| 4 | 88 | Φ51-Φ75 | 32 | Φ14- Φ25 | 40 | 145 |
| 4 | 120 | Φ56-Φ92 | 47 | Φ19- Φ40 | 40 | 160 |
| 5 | 80 | Φ36- Φ62 | 20 | Φ10- Φ14 | 40 | 123 |
| 5 | 88 | Φ46-Φ73 | 25 | Φ12- Φ17 | 40 | 134 |
| 5 | 110 | Φ59- Φ95 | 35 | Φ16- Φ27 | 45 | 138 |
| 5 | 120 | Φ59-Φ100 | 40 | Φ16- Φ32 | 45 | 138 |
| 6 | 104 | Φ44-Φ80 | 32 | Φ14- Φ25 | 60 | 135 |
| 6 | 80 | Φ36- Φ62 |
14
25
|
Φ6- Φ8
Φ10- Φ20
|
45 | 130 |
| 6 | 104 | Φ44- Φ80 |
28
35
|
Φ14- Φ21
Φ14- Φ24
|
45 | 135 |
| 6 | 104 | Φ48- Φ90 |
30
32
|
Φ10- Φ15
Φ15- Φ25
|
45 | 135 |
| 6 | 120 | Φ60-Φ100 |
25
40
|
Φ10- Φ20
Φ21- Φ30
|
45 | 135 |
| 6 | 140 | Φ75- Φ120 |
28
47
|
Φ15- Φ22
Φ26-Φ40
|
45 | 145 |
Notes:
1. 6-Core breakouts (with 3 big fingers and 3 small fingers) are used on trailing cable, variable frequency cables, telecommunication cables,control cables, etc.
2. Special specification is available per different requirements.
