Self-Closing Braided Wrap PET expandable cable wrap
- BrandDEEM
- TypeDM-SWS
Applications
Most commonly used over wire harnesses, cable assemblies, tubing and hose to provide a tough, durable protection and reduce noisy in the automotive, railway , machinery industry etc.
Features
weaved by Polyester monofilament and polyester multifilament, this special structure offers excellent reducing for noise .Side-entry design makes it easy to install, remove and reuse for wire harnesses or cables ,especially where it is installed in hard to reach areas such as door panels or dashboards. This kind of wrap achieves the same protection function as other common expandable braided products.
Technical Data
Dimensions
Material
PET monofilament and multifilament
Operating range
-50℃±150℃
Melt point
240℃±10℃
Certificate
ROHS,Halogen free
*special spool lengths or cut pieces available on request.
Size
As supplied
Packing

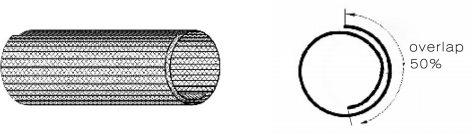

Overlap
(mm)
Max.bundle dia
m
3
4
200m/roll
50%
6
7
200m/roll
9
10
100m/roll
13
14
50m/roll
16
17
50m/roll
19
20
25m/roll
25
26
25m/roll
32
33
25m/roll
38
40
25m/roll
50
52
25m/roll
