Ant tracking Rain Shed heat shrink
2024/7/29 viewers
- BrandDEEM
- TypeDM-ATR
Introduction
Applications
Used to provide insulation protection for cable outdoor termination
Features
Anti-tracking Rain Shed
Shrink Ratio : 2
Operating temperature : 55C to + 105 C
Minimum fully shrink temperature : 110 C
Standard color : Red
Technical data
| Test ltems | Method of Test | Test Requirements |
| Tensile strength | ASTM D 2671 | 12MPa min. |
| Ultimate elongation | ASTM D 2671 | 200% min. |
| Volume resistivity | IEC93 | 1014Ω.cm min. |
| Dielectric strength | IEC 60243 | 10kV/mm(3mm) min. |
| Water absorption | ISO 62 | 0.5% max. |
| Heat shock at 225°C/4hrs | ASTM D 2671 | No cracking, dropping |
| Density | ASTM D 792 | 1.1~1.3g/cm3 |

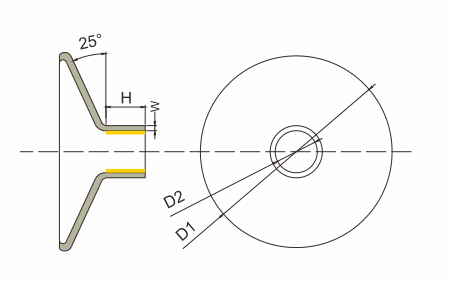

| Size | D2(mm) | As Supplied (mm) | After Recovered | |||
| mm | a(Min.) | B(Min.) | H(Min.) | D1(Nom.) | W(+/-10%) | h(Min.) |
| 11035/12 | 35 | 12 | 20 | 95 | 3 | 18 |
| 12048/20 | 48 | 20 | 28 | 120 | 3.5 | 20 |
| 13060/25 | 60 | 25 | 30 | 120 | 3.2 | 20 |
| 14060/30 | 60 | 30 | 35 | 140 | 3.5 | 30 |
| 15075/30 | 75 | 30 | 35 | 140 | 3.3 | 30 |
| 160100/35 | 100 | 35 | 35 | 140 | 3.3 | 30 |
